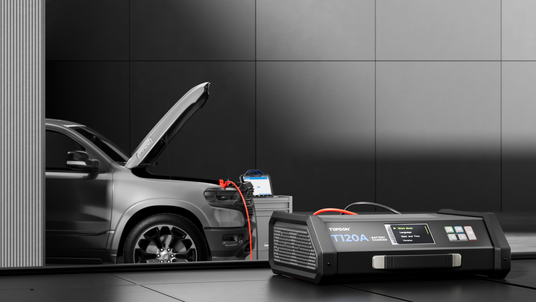

Voltage Steady, Performance Ready
The T120A ensures a stable and reliable power supply for prolonged diagnostic sessions and ECU programming tasks. This capability becomes especially crucial when working with luxury vehicles such as BMW and Benz, where the T120A’s maximum current of 120A comes into play. Say goodbye to interruptions caused by fluctuating power sources. The T120A delivers voltage and current consistency to keep your operations running smoothly.

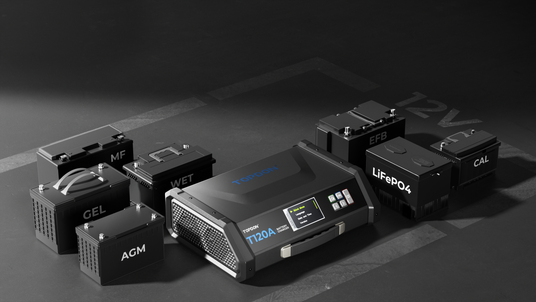

Precision Power for Your Varied Demands
Meet the T120A charger, your solution for versatile charging needs. Designed to accommodate both 12V lead-acid and 12V lithium iron phosphate batteries, it effortlessly adjusts to diverse power requirements. And here’s the kicker: with our innovative "Custom Mode," you have the power to tailor and save your unique charging preferences, guaranteeing a precise and personalized charging experience on every use.
9-Step Smart Charging
TOPDON’s patented 9-step charging provides an optimized, maintained, and integrated charging process for your battery. This trickle charger not only replenishes your battery but also performs desulfurization and maintenance tasks, revitalizing your car battery and maximizing its lifespan.

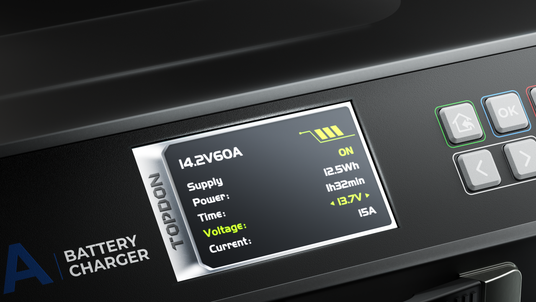

Adjustable Voltage and Current
The T120A allows real-time adjustment of output voltage and current, facilitating precise charging and providing flexible, reliable power support for maintenance tasks. It’s also suitable for electronic load testing in laboratories.

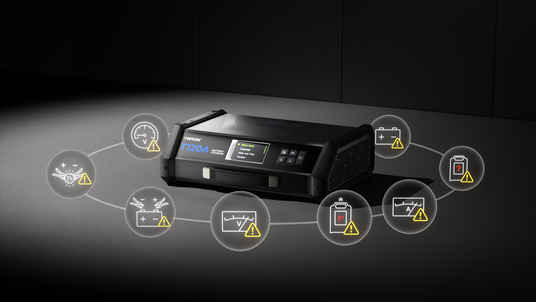

Safety First
Ensuring safe charging is our top priority for the T120A. We’ve incorporated eight advanced safety features to guard against mishaps like reverse connections, short circuits, overheating, overvoltage, overcharging, and even sparks. Our aim is to ensure a worry-free charging experience.
One Charger for All
With the TOPDON T120A 12V 120A charger, versatility meets power. It caters to a range of devices from vehicles to boats, making it indispensable for automotive technicians, electronics engineers, and battery manufacturers alike. Whether you require rapid charging or high-power supply, this charger ensures reliable power whenever and wherever you need it.
More Product Info
Download >>-
Specification
Electrical Specifications
- Input Voltage: 90~240Vac
- Output Voltage: 11~16.8V 5-120A(adjustable), up to 1700W
- Charging Mode: Supply, Lead-Acid, LiFePO4, Custom, NORM, AGM
Cable
- Input: AWG18#, 2m
- Output: Positive AWG4#, 2.2m or 5m; Negative AWG4#, 2.2m or 5m
- Working Temperature: 14°F to 104°F (-10°C to 40°C)
- Storage Temperatue: -4°F to 167°F (-20°C to 75°C)
- Note: To switch the output line length, please change the settings in Output Line Settings.
Safety
- Protection: Over-temperature protection, input low voltage protection, overload protection, bad battery protection, short circuit protection, overvoltage protection, reverse connection protection, host abnormality protection.
-
Packing List
- Tornado120000
- 2m or 5m Battery Clamps
- USB-A to USB-B Cable
- AC Power Cable
- User Manual
- Safety Guide
- Tornado120000
Video
FAQ
General
Will T120A automatically stop charging a battery after it is fully charged?
Will T120A automatically stop charging a battery after it is fully charged?
Yes. T120A follows a smart stepwise charging algorithm. When the battery is fully charged, TI20A will automatically stop charging it. There is no risk of overcharging. If you still keep the battery connected after it is fully charged, the charger will continuously monitor its status and will automatically resume charging when the battery voltage falls below the threshold.
Operation
How do I choose the charging current?
How do I choose the charging current?
The optimal charging current is up to the battery capacity. We recommend that the current be no greater than 20% of the battery capacity. For example, for a 100Ah battery, the charging current should not be greater than 20A.
Why do some batteries not charge properly?
Why do some batteries not charge properly?
In general, a 12V battery with a voltage below 8.5V may have been damaged and thus cannot get charged properly. You can try the SUPPLY mode for charging the battery.
In modes other than the SUPPLY mode, the device automatically disables power output upon battery disconnection. Is it possible to add a setting to enable or disable the automatic power output disabling function?
In modes other than the SUPPLY mode, the device automatically disables power output upon battery disconnection. Is it possible to add a setting to enable or disable the automatic power output disabling function?
A: The device is designed to automatically disable power output after the battery is disconnected, primarily for safety reasons. This is especially important in environments like repair workshops, where improper placement of battery clips could lead to a short circuit between the positive and negative poles. Although the device has short circuit protection, to ensure the normal working logic and a safe environment, we have adopted the current design logic.
Specifically, the design logic is as follows:
* First-time use: To ensure charging safety, please confirm the battery information, select the correct current and voltage, and then confirm to start charging. Since the device's output current is relatively high, choosing the appropriate current for charging is essential for optimal battery matching.
* SUPPLY mode (constant voltage mode): If you are unsure about the required current for the battery, you can use the SUPPLY mode for charging.
Will the power output also be interrupted in the 0V charging mode?
Will the power output also be interrupted in the 0V charging mode?
No. The power output is not interrupted in the SUPPLY mode (constant voltage mode). This mode is designed to maintain continuous power output regardless of battery connection status. The normal charging mode initiates the charging process only after a battery connection is established.
