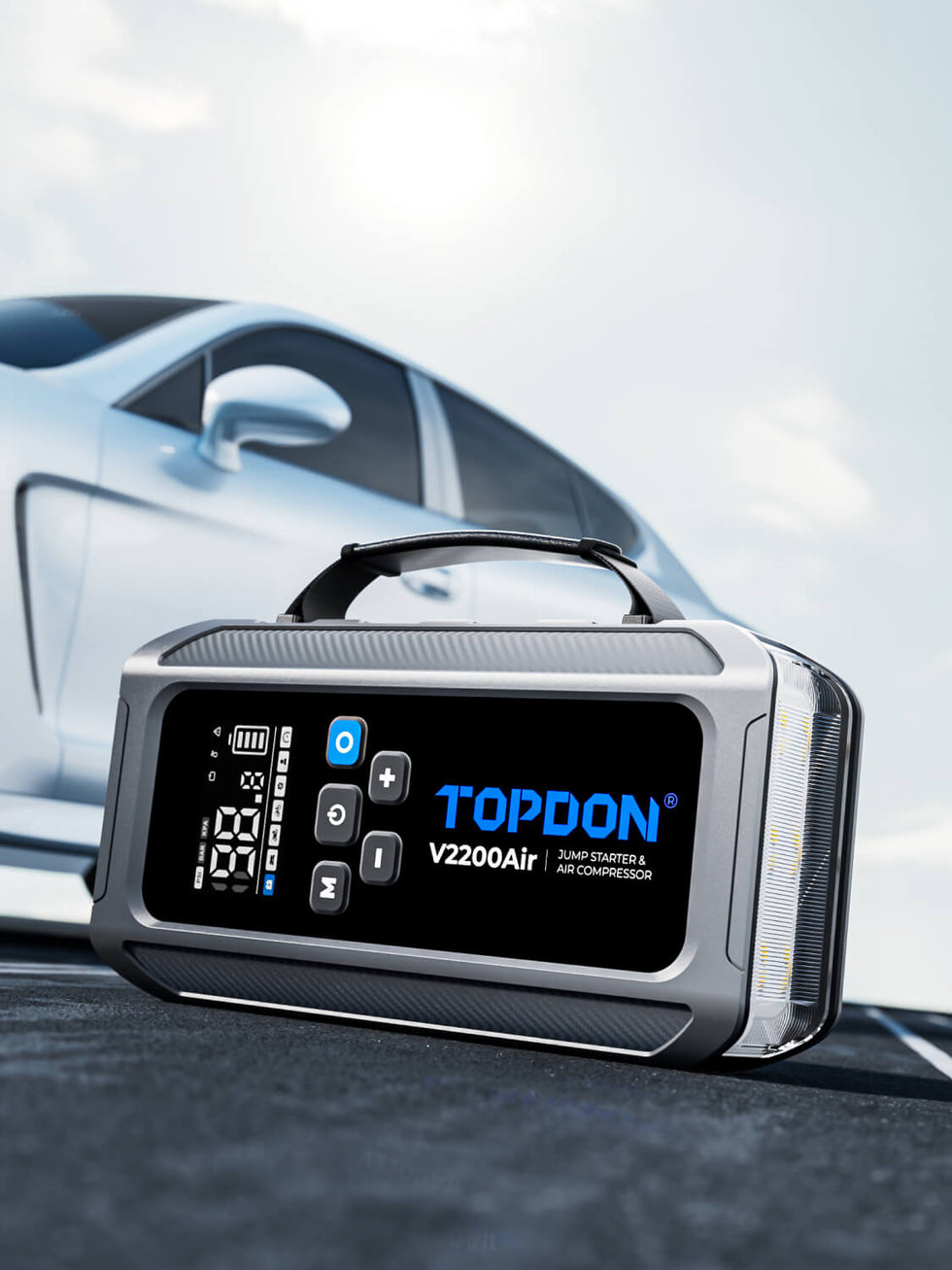

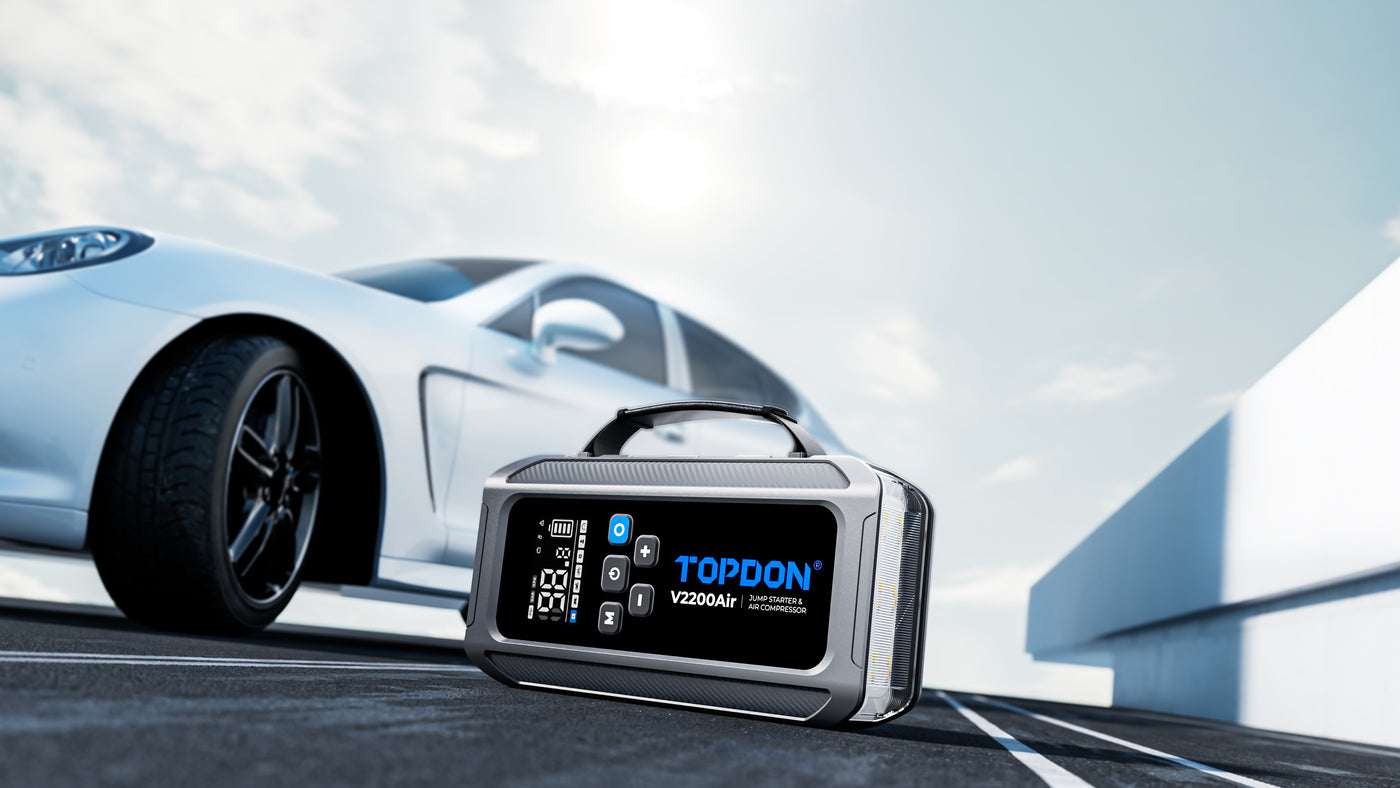

V2200Air

2-In-1 Jump Starter and Tire Inflator

Introducing the V2200Air, the ultimate all-in-one solution for every car owner's emergency needs. This versatile device allows you to jump-start your car, inflate your tires, charge your devices, and illuminate your surroundings with ease. With an impressive 2200A peak current, it can start engines up to 8.0L gas or 6.0L diesel in just 2 seconds. The integrated air pump inflates tires in under 3 minutes, ensuring you're back on the road swiftly. Stay prepared for any situation and drive with confidence, knowing the V2200Air has you covered.

Instant Ignition, Anywhere You Are

The V2200Air delivers a powerful 2200A peak current, capable of jump-starting vehicles with engines up to 8.0 liters for gasoline or 6.0 liters for diesel in just 2 seconds. Whether you're stranded in a remote location or dealing with a dead battery during a busy day, this robust device ensures you can swiftly get back on the road without delay.

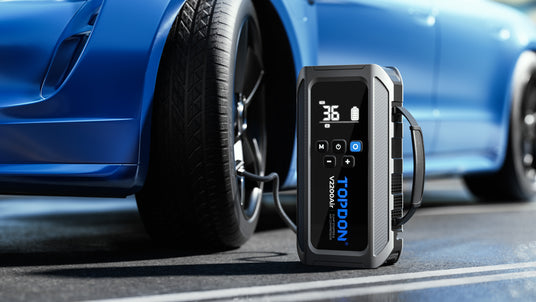

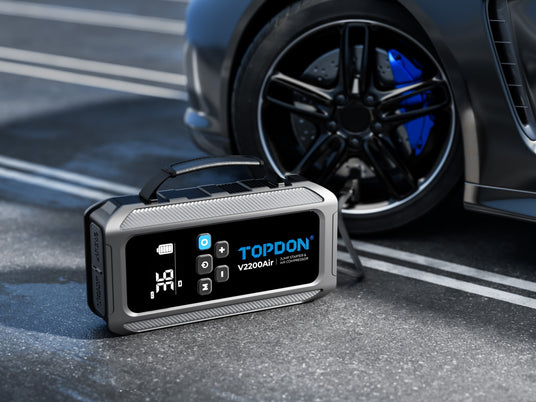

Tire Refill, Wherever the Road Takes You

In instances of low tire pressure or leakage, the V2200Air provides a rapid solution, inflating your tires in just 3 minutes. Its versatility extends across six modes, accommodating automobiles, motorcycles, bicycles, basketballs, and more, ensuring comprehensive utility for all your inflation needs.

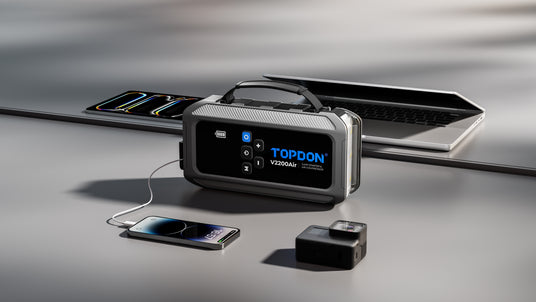

Unplug Anxiety, Power On

The V2200Air also functions as a PD45W fast-charging power bank, ensuring your gadgets are charged in just 30 minutes. Never worry about a dying phone battery; the V2200Air keeps you connected and informed.

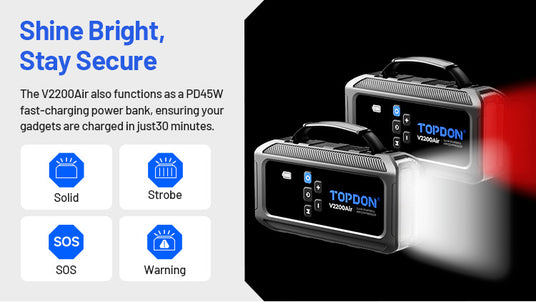

Shine Bright, Stay Secure.

Whether you need to light your way through the darkness, signal for help with SOS mode, or draw attention with Strobe mode, the V2200Air’s versatile 400-lumen LED flashlight ensures you’re never left in the dark.

Stay Ahead with Tire Pressure Awareness

The V2200Air features real-time tire pressure detection, enabling you to monitor and maintain optimal tire pressure. This proactive feature helps prevent potential issues, ensuring safer and more efficient driving.

More Product Info

Download >>
  • Specification

    • Peak Current: 2200A
    • Battery Capacity: 3.7V, 12000mAh, 44.4Wh
    • Type-C Input: PD45W, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A
    • Type-C Output: PD45W, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A
    • USBA Output: 5V⎓3A
    • DC Output: Max 16.8V⎓10A
    • Dimensions: 265*139*70mm ( 10.4*5.5*2.8 inches)
    • Weight: 1400g (3.08lb)
    • Cable Length: Positive: 250mm Negative: 150mm
    • Working Temperature: -10℃~55℃ (14℉~131℉)
    • Storage Temperature: -20℃~55℃ (-4℉~131℉)
    • Safety: Protections: Short Circuit Protection, Over Current Protection, Reverse Polarity Protection, Reverse Charge Protection, Over Temperature Protection, Over Discharge Protection
  • Packing List

    • V2200Air
    • Jump Clamps
    • USB-C to USB-C Cable
    • Inflation Nozzles
    • Inflation Needle
    • User Manual
    • Packing Box

Video

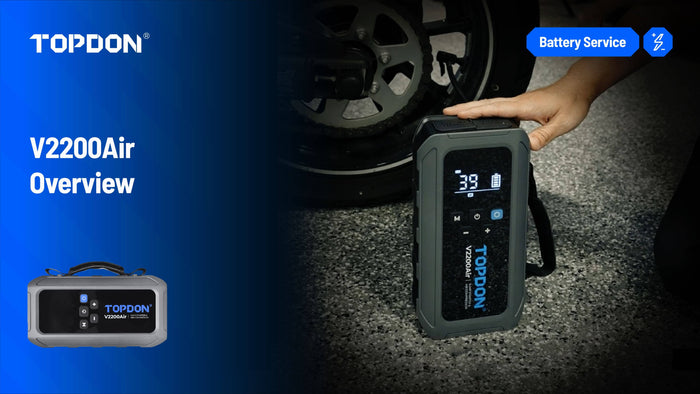

  • TOPDON V2200Air Overview| 2-In-1 Jump Starter and Tire Inflator

    Product Introduction

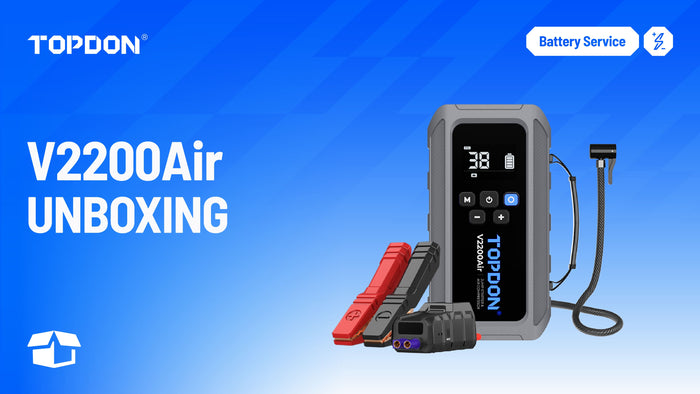

  • TOPDON V2200Air | Unboxing | 2-In-1 Jump Starter and Tire Inflator

    Product Introduction

FAQ

General

How long does it take to fully charge the V2200Air?

The charging time for the V2200Air varies depending on the charger used. For example, with a PD45W charger, it takes approximately 1 hour.

Why is the DC output voltage up to 16.8V? Will it damage my 12V electronic devices?

The DC output voltage ranges from 13.2V to 16.8V, increasing with the battery charge level. However, most 12V devices can tolerate up to 18V, so no damage will occur.

What are the recommendations for inflating low-pressure items?

When inflating low-pressure items like soccer balls or inflatable boats, use the sports ball inflation mode. This mode oper_x005fates at a lower motor speed, preventing damage to the items being inflated.

How long does it generally take to inflate a tire?

Typically, it takes about 5-6 minutes to inflate an empty car tire. The exact time depends on the tire’s capacity and the load it needs to support.

Can I use the inflator in cold environments?

Battery discharge capacity decreases in cold environments. It is recommended to store the device indoors or fully charge it before use. In cold conditions, the battery may be too weak to start the car or inflate items effectively.

Is there a relationship between the inflation time and the inflation speed of a tire when using the V2200Air?

There is no direct relationship between inflation time and inflation speed. The inflation time of a tire depends on several factors, including the current tire pressure, the set tire pressure standard, tire size, and specifications. Therefore, the inflation time may differ.

Ignoring all interfering factors, it takes about 1 minute to inflate a bicycle tire and about 5 minutes to inflate a car tire. Please note that these are approximate times provided for reference. Actual times may vary depending on the specific condition of the tire and environmental factors.

Operation

Why is the red error indicator light on?

This could be due to starting the device too frequently in a short period, causing the power unit to overheat. Please wait 20 minutes before trying again.
