V2200Plus

2-In-1 Jump Pack And Battery Tester

The V2200Plus is a 2-in-1 jump pack and battery tester that takes on the unexpected. Offering 35 jumps on a full charge, smart clamps to protect against common safety hazards, and features a 300-lumen LED light. A built-in Bluetooth module supports 12V battery tests by pairing an app with Bluetooth. This provides cranking, and battery test reports to let you replace a battery before it dies. The V2200Plus can even act as a charging brick for small devices. Take the V2200Plus everywhere you drive to be prepared for anything.

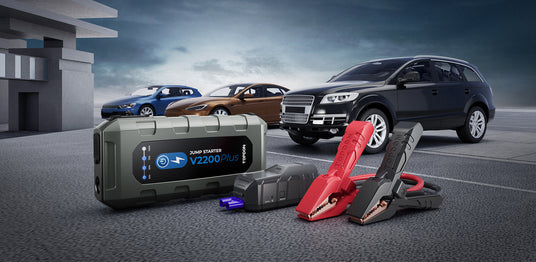

Starts All 12V Battery Vehicles

The power and quantity of jumps stored in the jump pack lets you jump most passenger vehicles on the road with ease.

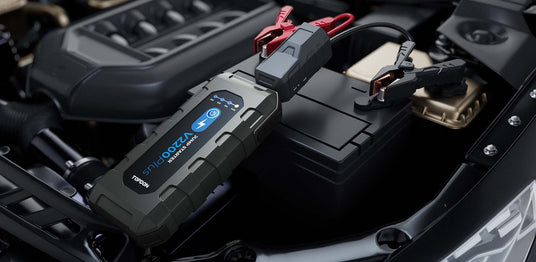

Test Lead-Acid Batteries Through The App

Use the app to perform detailed battery tests before a battery needs to be replaced. Analyze a battery’s voltage, state of health, and state of charge with charging tests. Use cranking tests to monitor cranking times and cranking voltages. The testing capabilities do not stop there. Check cold cranking amps to the rated CCA, and the overall battery health status for precise knowledge of a 12V battery.

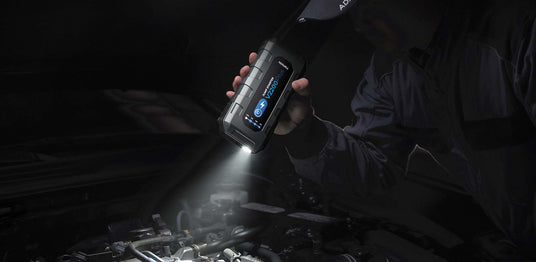

LED Flashlight

In any emergency situation, a high-power flashlight is always an asset. The V2200Plus features a 300 Lumen LED light to see in the dark and signal for help. Choose from a solid beam of light, a fast-paced strobe, or a slow SOS mode to signal for help.

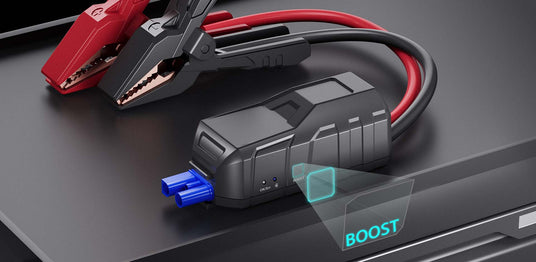

Boost Dead or Damaged Batteries

Use the boost function for particularly stubborn batteries. TOPDON's V2200Plus can start your vehicle using its BOOST FUNCTION, even if the battery has 0 voltage. Simply press and hold the BOOST button for 1 second and start your vehicle within the next 30 seconds.

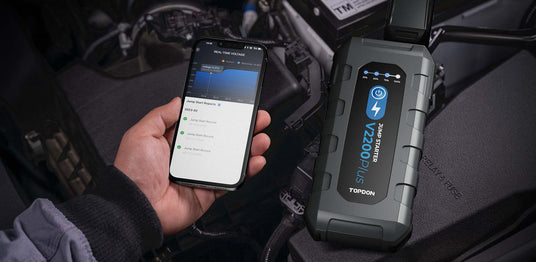

Test Real-Time Voltage

Works as a digital voltmeter by graphing battery charging, discharging, and starting voltage changes.

6 Safety Features

Featuring a half-dozen safety features. The V2200Plus protects users from electrical hazards, including sparks from cable clamps touching. The tools also feature the classic ruggedness of TOPDON’s JumpSurge series. Drop, dust, and water resistance makes for a reliable tool no matter the conditions.

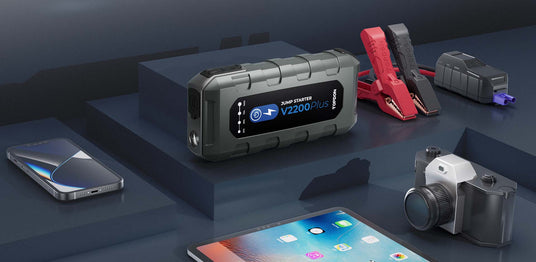

Power Essential Devices

Fully charge most devices and electronics within an hour! Charge smartphone, tablets, cameras, Kindles, speakers, tire inflators, and more!

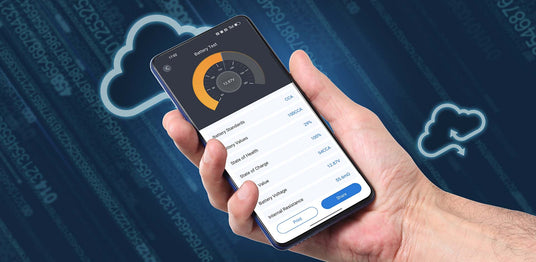

Generate Reports

Permanently stores all test results and battery data. Whether you’re a professional providing service and documentation, or a meticulous car expert keeping a battery log, we know you’ll appreciate having test results when you need them.

More Product Info

Download >>
  • Specification

    • Dimensions: 267*157*106 mm (10.5*6.2*4.2 in.)
    • Weight: 1460g (51.5 oz.)
    • Peak Current: 2200A; 500A 2S
    • Battery Capacity: 16000 mAh 3.7V; 59.2Wh
    • Input Port: Type-C:
    • Bidirectional, PD60W; 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A
    • Output Ports: Type-C:
    • PD60W20V⎓3A,15V⎓3A,12V⎓3A,9V⎓3A,5V⎓3A
    • USB1: QC18W,12V⎓1.5A,9V⎓2A,5V⎓3A
    • USB2: QC18W,12V⎓1.5A,9V⎓2A,5V⎓3A
    • DC: Max 16.8V⎓10A
    • Clamp Cable Lengths: 200mm (7.9 in.)
    • Jump Start Capacity: 8L Gas, 6L Diesel
    • Protections: Reverse connection, reverse charging, short circuits, over currents, over temperatures, & over discharges
    • Jump Volume: 35 Jumps On A Full Charge
  • Packing List

    V2200Plus *1

    Jump/Tester Clamps *1

    USB Cable *1

    Carry Case *1

    Multilingual Menu *1

Video

  • TOPDON V2200Plus | 2 In 1 Jump Starter and Battery Tester

    Product Introduction

  • TOPDON V2200Plus Overview | 2 In 1 Jump Pack And Battery Tester

    Product Introduction

  • TOPDON V2200Plus | Unboxing | 2 In 1 Jump Starter & Battery Tester

    Unboxing

FAQ

General

How many times can the V2200Plus jump start a car with a full charge?

Up to 40 times. It depends on the vehicle engine’s power and vehicle battery’s power.

How long does it take to fully recharge the V2200Plus?

It varies with the types of charger you are using. If your charger is 5V/3A, the charging time is 4.8 hours; if 5V/2A, then it is 7.2 hours.

Operation

How do I turn off the V2200Plus?

It will automatically power off when not in use for a few moments.

Software

Why can’t the app detect or connect to Bluetooth?

Observe whether the Bluetooth icon on the charging screen is flashing. If it is flashing, please turn on the positioning function and the Bluetooth function of the mobile phone (this is necessary, otherwise you will not be able to search for nearby Bluetooth devices), then open the app, click the icon below in the app, enter the device’s search page and connect .If the Bluetooth icon is always on, it means that the device has been connected by other mobile phones.
