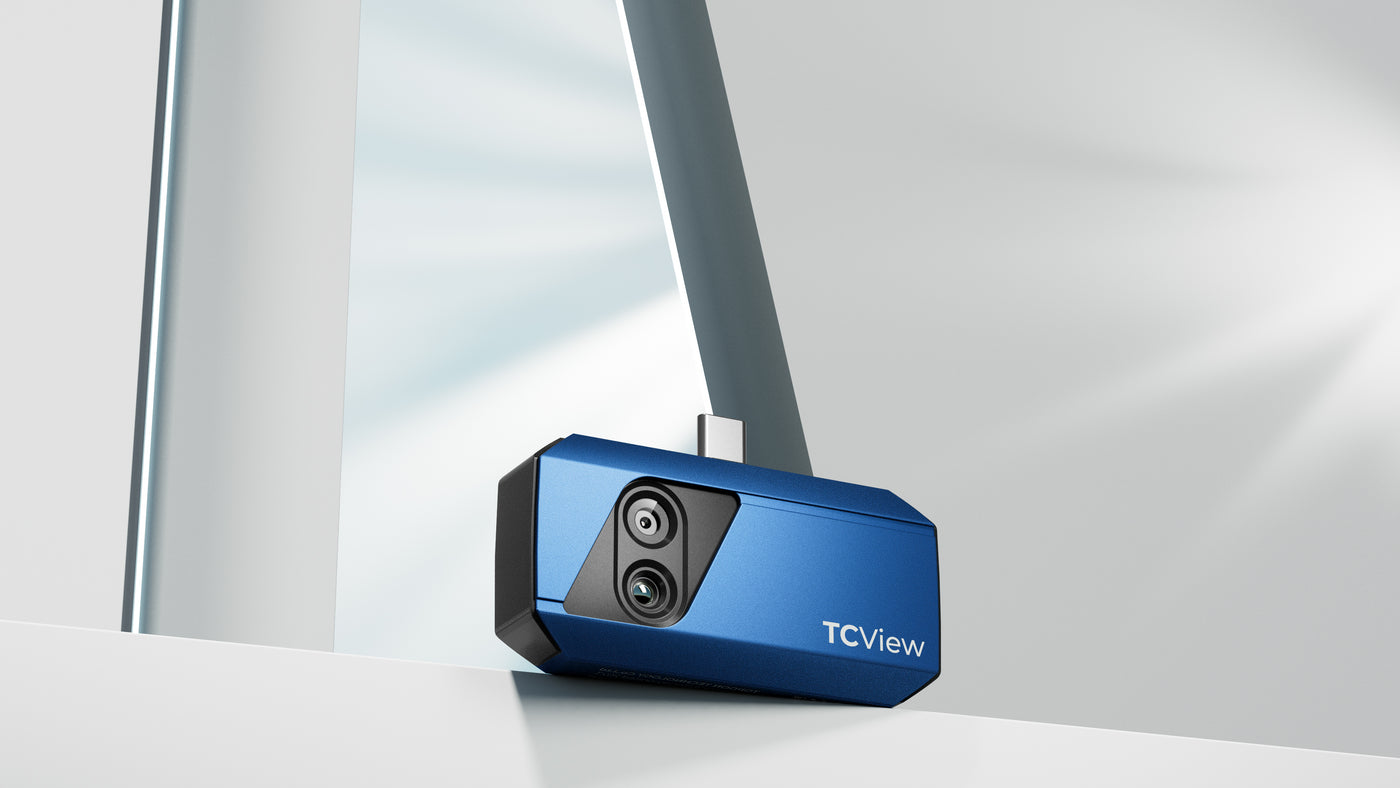

Dual Lens to Unveil the Unseen
TC001 Plus comes equipped with a 100W visible light lens and an infrared lens, along with the image fusion technology to capture targets in original colors and reveal their contours, eliminating any trace of fuzziness.
Pipelines, circuits, vehicle engines, floor heating systems, and even objects with subtle temperature variations are effortlessly outlined.
Enhanced Image Quality
Sporting an ultra-high IR camera resolution of 256x192 pixels, TC001 Plus delivers crystal-clear thermal images for precise problem identification. Its 25Hz refresh rate ensures smooth, non-lagging image display, making it easier to identify and analyze details of the targets.
Extensive & Accurate Temperature Measurement
With a temperature range from -4°F to 1022°F (-20°C to 550°C), TC001 Plus delivers precise temperature readings at 3.6°F (2°C) or 2% of the actual temperature and a temperature measurement resolution of 0.1°F (0.1°C).
It also boasts continuous measurement capabilities, generating waveform graphs for intuitive monitoring and facilitating detailed analysis of temperature variations.
Portable & Durable
Its sleek and rugged design enables you to tackle thermal tasks with ease wherever your adventures take you.
Compact and lightweight, it measures just 2.8x1.65x0.55 inches and weighs a mere 1 ounce (30 grams).
Built to withstand drops of up to 1m, it guarantees reliability in any scenario.
Various Applications
- Electrical Inspectors
- House Inspectors
- HVAC Inspectors
- Auto Mechanics
- Engineers
- Building Inspectors

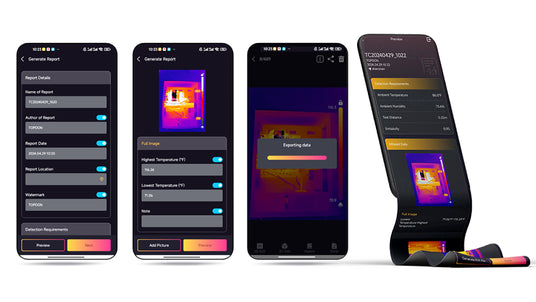

More Advanced Features with Thermal Imaging Software
Experience seamless temperature detection and data analysis with the TCView desktop software and TopInfrared app. Get detailed reports and recordings for each image, export pixel temperature charts, and set temperature alarms for quick identification.
More Product Info
Download >>-
Specification
- Lens: 100W Visible Light & IR Lenses
- IR Resolution: 256 x 192
- NETD: ＜40mK
- Frame Rate: 25Hz
- Object Temperature Range: -4°F to 1022°F (-20°C to 550°C)
- Accuracy: ±2°C or ±2% of reading
- Temperature Resolution: down to 0.1°C (0.1°F)
- Operating Systems: Compatible with Android Phones/Tablets & Windows Laptops
- Weight: 30g
- Dimensions: 140*102*46mm (2.8*1.65*0.55 inch)
- Note: TC001 Plus is not compatible with the following models: Samsung SM-A520F, Samsung SM-A546E, Samsung SM-M546B, Realme RMX3760, Xiaomi MI 8 lite-8.1, and Motorola XT2071-4.
- Lens: 100W Visible Light & IR Lenses
-
Packing List
- TC001 Plus Thermal Imaging Camera
- 50cm Multifunctional Extension Cable
- Carrying Bag
- EVA Carrying Bag
- Cleaning Cloth
- Quick User Guide
- TC001 Plus Thermal Imaging Camera
Video
FAQ
General
Can the TC001 Plus detect objects underwater, through glass, or a wall?
Can the TC001 Plus detect objects underwater, through glass, or a wall?
No. Infrared detectors mainly detect the long-wave infrared region of 8~14μm, and can only be used to measure surface temperature.
Is the TC001 Plus compatible with iOS devices?
Is the TC001 Plus compatible with iOS devices?
No. The TC001 Plus is ONLY compatible with Android devices and Windows computers.
What external factors will affect the infrared temperature measurement?
What external factors will affect the infrared temperature measurement?
The factors are as follows:
a) Emissivity of the target object surface.
b) Ambient temperature: the object will reflect the infrared rays emitted by surrounding objects, which affects the temperature measurement of the object itself.
c) Atmospheric temperature: the atmosphere also emits infrared rays.
d) Atmospheric transmittance: the infrared rays emitted by the object are attenuated in the atmosphere.
e) Distance: the longer the distance, the greater the attenuation of the infrared rays emitted by the object in the atmosphere.
Operation
Why there is no response after connecting the TC001 Plus to a phone?
Why there is no response after connecting the TC001 Plus to a phone?
Follow the below steps to identify the problem:
a) Check if the blue LED indicator on the side of the TC001 Plus is on. If not, the device may not be properly connected to your phone, or your phone does not support an OTG functionality.
b) Check if OTG is available in your phone Settings and if it is ON. For most phones, OTG functions are enabled by default and can be used directly. If not, please search “OTG” in Settings and turn it on manually. Please note that the TC001 Plus is not compatible with phones without OTG function.
c) Check if the version of Android is 6.0 or above.
d) Check if you have downloaded the TC001 Plus app and given necessary authorization.
e) Unplug the TC001 Plus and reconnect it. If there is still no response, please contact after-sales personnel.
Why does the temperature reading increase when the device gets closer to the object?
Why does the temperature reading increase when the device gets closer to the object?
Infrared radiation attenuates when passing through the atmosphere. The longer the distance, the greater the attenuation. Thus, the accuracy of temperature measurement at a distance will decrease.
To ensure accuracy of measurement, please go to Personal Information - Settings - Temperature Correction - Distance to Spot, and input the actual distance (max: 5m) to get the corrected temperature.
Why is there a clicking sound? What does "shutter moving" mean?
Why is there a clicking sound? What does "shutter moving" mean?
The temperature of the infrared imager will change slightly during use. Therefore, a periodic internal temperature calibration is needed. The micro-motor controlled activation or deactivation of such internal calibration makes such a sound, which is known in the industry as "shutter moving".
Why is the measured temperature not precise?
Why is the measured temperature not precise?
The temperature resolution of the TS001 is ±2%. And the TC001 Plus provides a normal temperature range of -20~150°C (-4~302°F), and a high temperature range of 150-550°C (302~1022°F). Please select the corresponding range in the app before measuring.
